Author Topic: Minimization of connection corrosion  (Read 2798 times)

ted.lowe

  • Guru
  • ****
  • Posts: 903
  • '00 Dakota EV
Minimization of connection corrosion
« on: July 20, 2014, 03:37:39 AM »
Here's a good tip to reduce corrosion on lithium battery connections:

Aluminum to copper

Before connecting to prismatic cells with copper bus bars (dissimilar metals), burnish the aluminum terminals slightly to remove the coat of aluminum oxide, and cover with Noalox anti-oxidant compound, which you can get from, among others, Grainger.

(Thanks to Bull Dube' of KillaCycle for the tip.)

Source: http://liionbms.com/php/prismatic_tips.php

---
i've used the recommended Noalox before when installing solar electric panels using stainless steel bolts in aluminum frames to prevent galling and seizing, but interested to see it's also used as an anti-oxidant.

http://www.idealindustries.com/prodDetail.do?prodId=noalox
« Last Edit: July 20, 2014, 03:50:10 AM by ted.lowe »

ted.lowe

  • Guru
  • ****
  • Posts: 903
  • '00 Dakota EV
Re: Minimization of connection corrosion
« Reply #1 on: July 20, 2014, 04:36:10 AM »

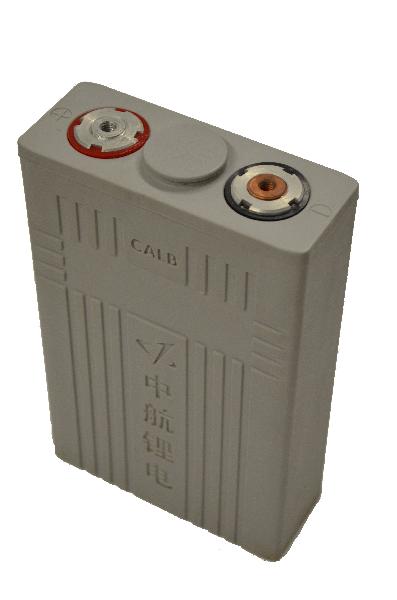

And because the CALB CA cells have two types of terminals (1 aluminum and 1 copper), another compound (PENETROX) may be needed for the copper bar to copper terminal connections:

http://www.galco.com/buy/Burndy/PENE8

Source: http://www.eng-tips.com/viewthread.cfm?qid=303652

« Last Edit: July 20, 2014, 06:03:59 PM by ted.lowe »

ted.lowe

  • Guru
  • ****
  • Posts: 903
  • '00 Dakota EV
Re: Minimization of connection corrosion
« Reply #2 on: July 20, 2014, 04:48:08 PM »
Good discussion of conductivity vs insulating, corrosion, etc.

http://www.w8ji.com/dielectric_grease_vs_conductive_grease.htm

jeffrey.miller

  • Veteran
  • ***
  • Posts: 282
Re: Minimization of connection corrosion
« Reply #3 on: July 21, 2014, 04:35:52 PM »
That article is an excellent read.  Sounds like maybe you should procure some for use on the S10 while you are still driving it.
